Maxon Machinery

HAFCO Metal Master C6241 x 1000 centre lathe
410mm swing o/bed (224mm o/slide, 640mm in gap) x 1000mm centres
25-2000rpm, 58mm spindle bore, mm and tpi threading
3 and 4 jaw chucks, quick change tool post, interlocked guard, work light.
7.5hp 415volt motor, machine weight 1850kg

HAFCO METALMASTER C6241 X 1000

John Heine 200A Series 2 press
3 ton, 1.25" stroke, bed 300mm x 200mm,
160 strokes per min, .37kw 415 volt motor
fixed table guarding, Weight approx 305 kg.

JOHN HEINE 200A SERIES 2

John Heine 205A Series 3 press
45ton, 3.25" stroke, bedplate 736mm x 470mm
110 strokes per min, 4kw 415volt motor.
Pneumatic actuated, guarding.
Machine weight approx 3050kg

JOHN HEINE 205A SERIES 3

First LC-1.5TM Milling Machine
30int spindle, speeds 68-2280rpm (8off)
table 23mm x 1065mm, travels X-720mm, Y-305mm, Z-406mm
Power feed to X (new) 2hp 415volt, weight approx 1000kg

FIRST LC-1.5TM

RADIAL HMT Model RM-61,
5 mt, 1190 mm max drilling radius, 40-1800 rpm, power feed, power arm elevation, hydraulic locking , operator's manual,
machine weight approx. 2860 kg.

HMT RM61

WEINGARTEN Forging Press Mod PS160, max pressure 250 tons, stroke 120mm - 360mm

1974 WEINGARTEN FORGE PRESS PS160

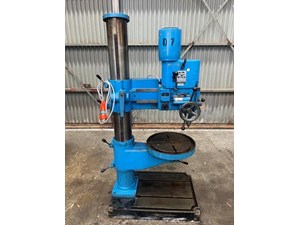

Arboga ER-1830 Radial Arm Drill
4 morse taper, 600mm arm, speeds 80-890rpm,
feeds .004-.008", 160mm quill travel, 1.9/1.3hp 415volt,
Machine weight approx 700kg Ex Govt

ARBOGA ER1830

Marksman Mk-55SP Punch and Shear
2 station machine, 55ton.
Punch - 22mm in 20mm, 50mm in 9mm
Plate Shear - 220mm x 20mm, 350mm x 12mm
Angle Cutting - 100mm x 13mm
Section Cutting - 38mm round 35mm square section
Notching - 51mm x 90mm x 13mm
Manual, machine weight approx 1700kg.
Touch and cut electric back stop
5.5kw 415volt, Ex Govt machine

MARKSMAN MK-55SP

Colchester Magnum 1250, 635mm swing o/bed (390mm o/slide, 900mm in gap) x 3000mm centres, 118mm spindle bore, speeds 6.3-1250rpm,
mm and tpi threading, 3 and 4 jaw chucks, fixed roller steady, face plate,
quick change tool holder, 2 axis DRO, rapid traverse. 15kw motor. Comes with some tooling and operators manual. Weight 4700kg

COLCHESTER MAGNUM 1250

Servex HP30 Workshop Press
300kN (30t)
Between up rights - 711mm
Between table channels -152mm
Table height adjustment - 889mm
Screw travel - 170mm
Ram travel - 152mm
Weight - 280kg
New cylinder and pump kits, vee blocks, extension handle and flat chuck.
Ex Govt.

SERVEX HP30

OZ-Form type PF
1-1.5mm capacity, Australian made.
1.5kw 415volt, Ex Govt.

OZFORM PF

Richmond Envoy, 65 mm capacity, 5 morse taper, 100mm dia quill,
speeds 40-1850 rpm, (12 off) feeds.0.025-0.65mm/rev (9 off),
5.5HP main motor, 415 volt. Operators manual.
Centre spindle to column 300 mm min - 1220 mm max.
Machine weight 2900kg (w/o box table)

RICHMOND ENVOY
