Maxon Machinery

Hotta HM-5 Vibro-Shear/Nibbler, 1000mm throat
with circle cutting centres and straight cutting fence
Edge cutting max 5mm, max circle dia 1000mm
Takes 14mm tooling, .75kw motor 415 volt.
Japanese machine. Unit weight 730kg.

HOTTA HM-5

REPCO Warren & Brown 2410AF valve refacer
Ball style chuck, 240volt, ex Govt.

REPCO POWER 2410AF

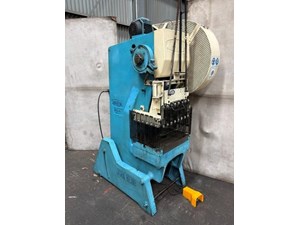

John Heine 201A Series 2 press
8 ton, stroke 40mm, 125mm adjustment of slide.
135 strokes per min, table 250mm x 400mm,
.75kw 415 volt motor, Telcamet lubricator, Press Guard guarding.
Very tidy press

JOHN HEINE 201A SERIES 2

Hafco Metal Master VB-450
460mm throat depth x 255mm height
 500mm x 600mm tilting table,  speeds 20-80mmm/min
light, blower, blade welder .75kw 415 volt, manual. 370kg

HAFCO METALMASTER VB-450

DoAll 17 centre lathe
430mm swing over bed (242mm o/slide) x 1525mm centres
spindle bore 75mm, speeds 40-2120rpm (18)
mm and tpi threading, 2 x 3 jaw & 1 x 4 jaw chucks
2 x fixed steadies, quick change tool holder
10hp 415 volt motor, machine weight approx 2200kg

DOALL 17

Hwacheon HL-460 x 1000GN gap bed lathe
460mm swing o/bed (280mm o/slide, 680mm in gap) x 1000mm centres
52mm spindle bore, speeds 32-1800rpm, mm and tpi threading,
2 speed tail stock, DRO, 3 and 4 jaw chucks, face plate.
5.5kw 415volt, approx 2000kg Quality Korean Machine

HWACHEON HL460 X 1000GN

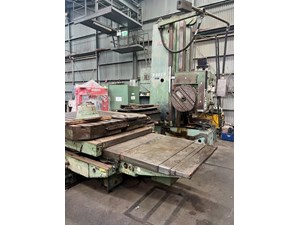

Horizontal, Union BFT 125/5, 125 mm spindle, travels: long 2000 mm, cross 1600 mm, vertical 1600 mm, 3 axis Sony DRO
Currently disassembled (head and column unbolted from table) ready for loading to transport.

UNION BFT125/5

Invema FR-915 Radial Arm Drill
4 morse taper, 915mm arm, 2hp 415 volt,
speeds 32-1380rpm (12 off), feeds .008-.011"/rev (4 off)
Box table 545mm x 700mm, Italian made mchine.

INVEMA FR-915

Formosa FM-700 Radial Arm Drill
4mt, 700mm arm, 88-1500rpm, power feed.
Power rise and fall, coolant, 1.5kw 415 volt
new 460mm x 300mm x 300mm box table

FORMOSA FM700

Auto Transformer Starters
30kw - $1200+gst
90kw - $2500+gst
370kw - $3500+gst

OTHER 30KW, 370KW

Manford UNITEC CIM-4V Milling Machine
40iso spindle, 50-3500rpm (2 ranges)
Table 254mm x 1270mm, travels X-760mm, Y-370mm, Z-400mm
Power feed to X axis, 3 axis DRO, 5hp 415volt vice and drill chuck.
Machine weight approx 1500kg

MANFORD CIM-4V

Colchester Triumph 2000
390 mm swing o/bed (240 mm o/slide, 580 mm in gap) x 1270 mm centres, 54 mm bore, 25-2000 rpm, mm & tpi threading, 3 & 4 jaw chucks, fixed and traveling steadies, face plate, 2 axis DRO, Motor 7.5hp 415volt
Machine weight approx 1200kg

COLCHESTER TRIUMPH 2000
