Maxon Machinery

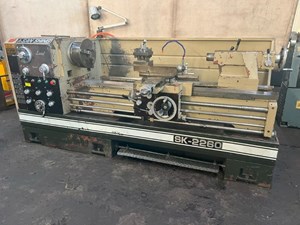

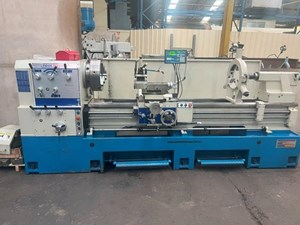

San Shing SK-2260 lathe
560mm swing o/bed (350mm o/slide, 850mm in gap) x 1500mm centres,
105mm spindle bore, speeds 20-1200rpm (12 off), mm & tpi threading.
3 & 4 jaw chucks, face plate. Operators manual, 7.5kw motor.
Machine weight 2600kg

SAN SHING SK-2260

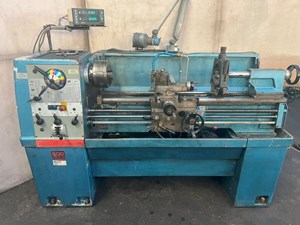

Colchester Master 2500
335mm swing o/bed (210mm o/slide, 480mm in gap) x 1000mm centres
40mm bore, speeds 30-2500rpm, mm & tpi threading
3 & 4 jaw chucks, fixed steady, face plate, 2 axis DRO,
quick change tool post, 3.7kw motor 240volt/single phase.
Operators manual, weight approx 1000kg.

COLCHESTER MASTER 2500

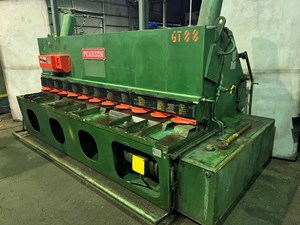

Pearson Model TX
Capacity 10mm x 3048mm
Individual hold down clamps
Power back gauge, 20hp motor
Machine weight 6850kg

PEARSON TX 10MM X 3045MM

Butler 12 precision tool room slotter
Max. Stroke Length 305 mm
Table Diameter 610 mm
Stroke Rates 19 strokes/min to 75 strokes/min
Cross Travel of Table 600 mm
Longitudinal Travel of Table 525 mm
Height between Table Top & Machine Body 385 mm
Distance between Tool & Machine Body 625 mm
Tilting of Ram 0 degree to 5 degree
Automatic Feed Travel on Cross, Longitudinal & Rotation of Table.
Equipped with 2-Axis DRO.

BUTLER 12" SLOTTER

YSD HGN-25/8
Capacity 8mm x 2500mm, (4mm in stainless steel)
variable rake angle 0.5-2.5 degrees,
power back gauge 750mm range, throat 100mm,
17 strokes/min, 11kw motor, DOM 2010.
Machine weight 6000kg, Ex Govt.

2010 YSD HGN 25/8

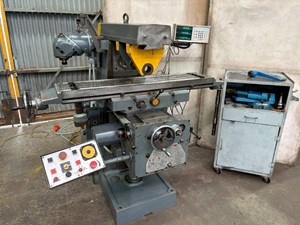

JAFO Jaracin FWD-32U universal motorised overarm milling machine.
40 ISO spindles, speeds 45-2000rpm vertical & 31.5-1000rpm horizontal, 313mm x 1230mm swivel table, feeds and rapids. Vertical Huron type with 100mm manual quill feed. Motors 2.2kw vertical, 4.5kw horizontal, 415 volt, 3 axis DRO. Has rotary table, arbour supports and arbours.
Machine weight approx 2400kg.

JAFO JAROCIN FWD32U

Pacific FCM-1600 ram head milling machine.
50 int spindles, 400mm x 1600mm swivel table,
travels X-1150mm, Y-330mm, Z- 465mm, Overarm 550mm. Feeds and rapids to X, Y, Z & overarm. Spindle speeds 28-1400rpm horizontal and vertical. 3/4 Axis DRO, Vice, arbour and arbour support, various collect chucks and tooling. Motors 10hp horizontal and 7.5hp vertical. Operators manual.
Machine weight 3700kg.

PACIFIC FCM1600

Shenyang CW62110C
1100mm swing (800mm o/slide, 1300mm in gap) x 5000mm centres
Speeds 4.8-640rpm, spindle bore 130mm, mm & tpi threading, feeds and rapids, power compound slide, 2 x 4 jaw chucks, 2 x 3 jaw chucks, face plate, fixed and travel steadies, taper turning, sundry tooling. Operators manual. Machine weight approx 7800kg

SHENYANG CW62110C LATHE

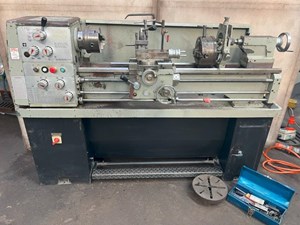

Dashin Champion 1530
390 mm swing o/bed (240 mm o/slide, 610 mm in gap) x 760 mm centres.
55 mm spindle bore, 25-2000 rpm, mm and tpi threading,
New 200mm 3 jaw and 250mm 4 jaw chuck. Fixed and travel steadies,
quick change tool holder, 2 axis DRO. Ex Govt.

DASHIN CHAMPION 1530

Potisje PA-45/6000 lathe
910mm swing o/bed (630mm o/slide, 1200mm in gap) x 6000mm centres 140mm spindle bore, speeds 11-500rpm (20 off) mm and tpi threading rapid traverse, 2 axis DRO, quick change tool holder with 10 holders. 400mm dia 3 jaw chuck, 850mm dia 4 jaw chuck, 3 x fixed steadies, 2 x travel steadies. Sundry tooling, 20hp motor, manual. Machine weight approx 11500kg

POTISJE PA-45/6000

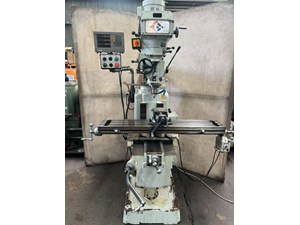

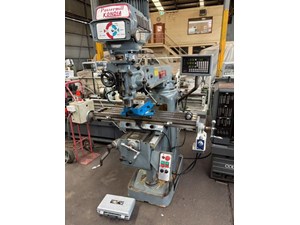

Kondia FV-1, 40iso spindle, 230mm x 1070mm table.
Speeds 50-3750rpm, power feed to long travel. 3 axis DRO
2 hp 415v motor, operators manual, drill chuck and face cutter.
Ex Govt. Machine weight approx 1100kg. 2 units available

KONDIA FV-1

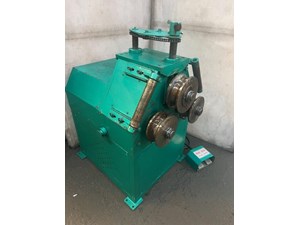

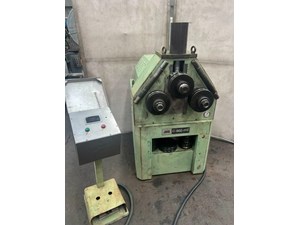

Pacific WB-750 section rolls
Rolls:
Angle 60mm x 60mm x 6mm, min r 450mm
Pipe 2NB, 300, min r 300mm
Rod 40mm, min r 350mm
Bar 50mm x 16mm, min r 400mm
Includes:
NB pipe rolls for .5 ,1, 1.5, 2, 2.5
RHS 20mm, 30mm, 40mm, 50mm
3kw, 415 volt, weight approx 600kg

PACIFIC WB750
